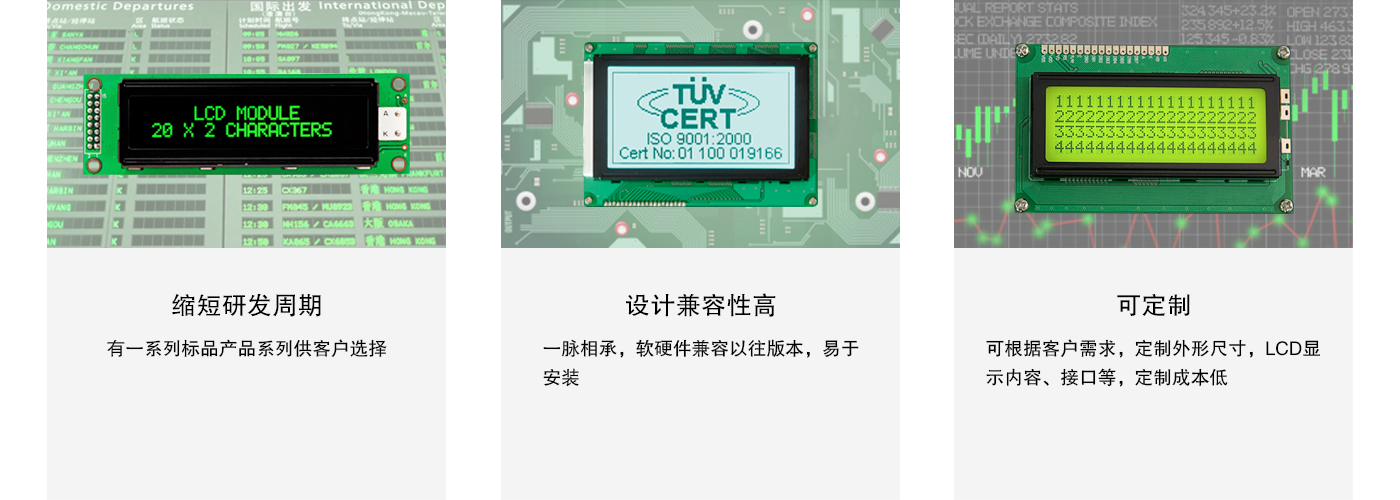

产品特色
产品参数—字符点阵
型号
显示格式
(字条*线)
外型尺寸
(mm)
V.A尺寸
(mm)
字符尺寸
(L*W)
点尺寸
(mm)
点间距
ABC008001C
8*1
80.0*36.0
60.5*18.5
6.45*10.75
1.25*1.30
1.30*1.35
ABC008001B
8*1
84.0*44.0
61.0*15.8
6.45*10.75
1.25*1.30
1.30*1.35
ABC008002D
8*2
58.0*32.0
38.0*16.0
2.96*5.56
0.56*0.66
0.60*0.70
ABC016001A
16*1
80.0*36.0
65.0*14.0
3.15*6.3
0.55*0.70
0.65*0.80
ABC016001B
16*1
122.0*33.0
99.0*13.0
4.92*8.18
0.92*1.10
1.00*1.18
ABC016002C
16*2
122.0*44.0
99.0*25.0
4.84*9.66
0.92*1.10
0.98*1.16
ABC016002E
16*2
80.0*36.0
64.0*16.1
2.96*5.56
0.56*0.66
0.60*0.70
ABC016002G
16*2
84.0*44.0
62.0*18.0
2.95*5.55
0.55*0.65
0.60*0.70
ABC016004A
16*4
74.0*24.5
60.0*11.5
2.95*4.35
0.55*0.5
0.60*0.55
ABC020002A
20*2
116.0*37.0
82.8*19.8
3.20*5.55
0.60*0.65
0.65*0.70
ABC020004B
20*4
98.0*60.0
77.0*26.5
2.95*4.75
0.55*0.55
0.60*0.60
ABC020004G
20*4
98.0*60.0
77.0*26.5
2.95*4.75
0.55*0.55
0.60*0.60
ABC040002A
40*2
182.0*33.5
154.5*15.8
3.20*5.55
0.60*0.65
0.65*0.70
ABC040004A
40*4
190.0*54.0
149.0*30.0
2.81*4.68
0.53*0.55
0.57*0.59
产品参数—图形点阵
型号 |
显示格式 |
模组尺寸 |
V.A尺寸 (mm) |
点尺寸 (mm) |
点间距 (mm) |
Controller LSI |
---|---|---|---|---|---|---|
ABG122032H | 122*32 | 84.0*44.0 | 61.0*19.5 | 0.40*0.45 | 0.44*0.49 |
|
ABG122032G | 122*32 | 80.0*36.0 | 60.5*18.5 | 0.40*0.45 | 0.44*0.49 |
|
ABG128064A | 122*32 | 93.0*70.0 | 70.7*38.8 | 0.48*0.48 | 0.52*0.52 |
|
ABG128064C | 128*64 | 78.0*70.0 | 62.0*44.0 | 0.40*0.56 | 0.44*0.60 |
|
ABG192064E | 192*64 | 100.0*60.0 | 84.0*31.0 | 0.36*0.36 | 0.41*0.41 | √ |
ABG240064B | 240*64 | 180.0*65.0 | 132.0*39.0 | 0.49*0.49 | 0.53*0.53 |
|
ABG240128S | 240*128 | 144.0*104.0 | 114.0*64.0 | 0.40*0.40 | 0.45*0.45 | √ |
APG320240B | 320*240 | 160.0*109.0 | 123.0*92.1 | 0.33*0.33 | 0.36*0.36 |
|
COB(Chip-On-Board)产品,是液晶显示模组的传统结构之一;
包含PCBA(LCD驱动芯片放在PCB上),一般包含PCBA、LCD、铁框加胶条或斑马纸或装PIN连接、背光等,可实现段码类、字符类、点阵图形类显示。
